Below we summarize the

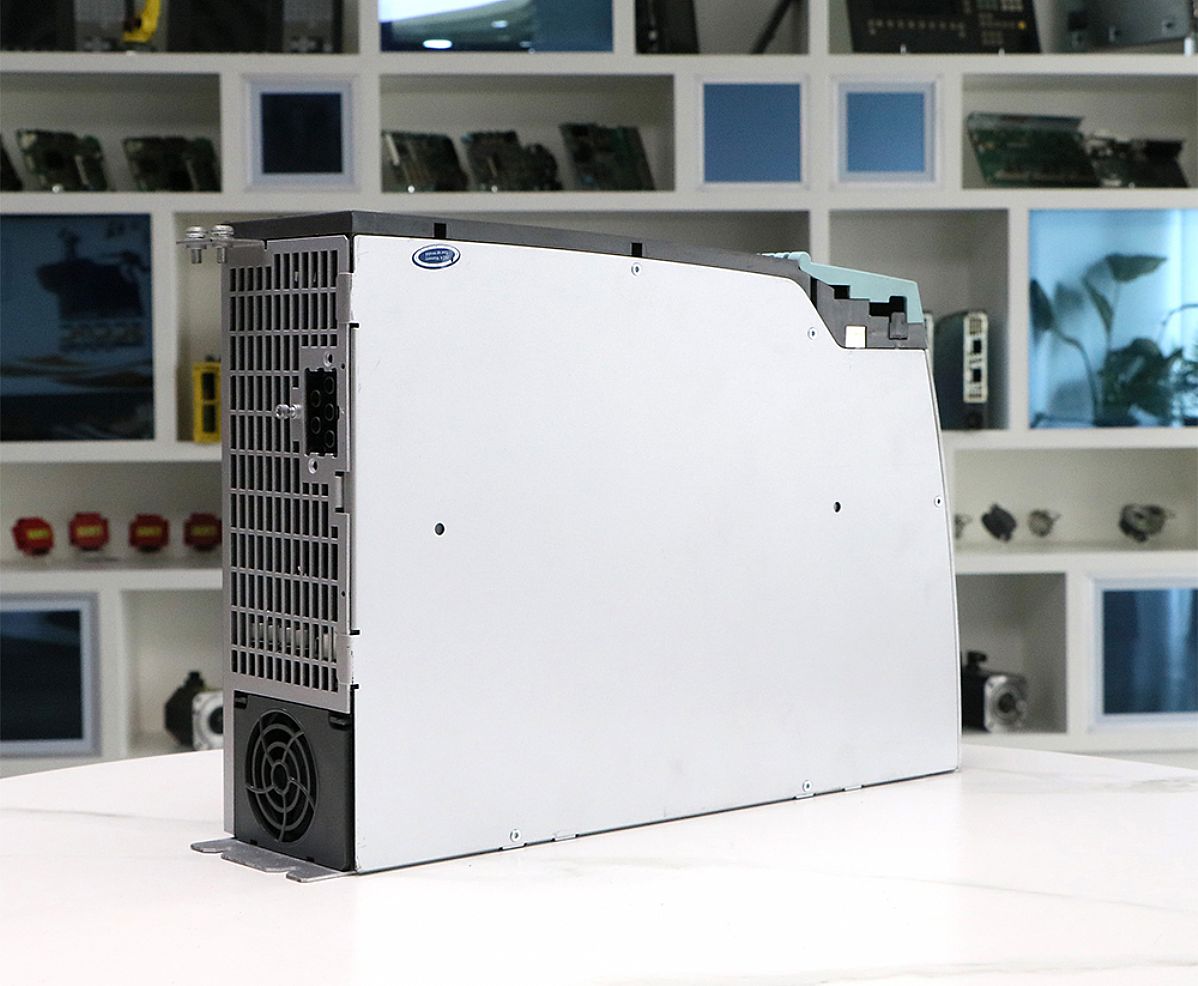

SINAMICS drive in the most common 5 errors, as well as the actual maintenance of how to check, how to repair, simple and clear, not a whole lot of terminology.
1. Error F30001: Overvoltage fault
What does it mean?
DC bus voltage is too high, beyond the safe range.
Possible causes:
* Large fluctuations in the mains voltage, with sudden rises.
* The braking resistor is not correctly parameterized or is simply broken.
* The motor feeds back energy when decelerating, and the voltage soars.
How to handle:
* Measure the inlet voltage first to see if there is any over-voltage.
* Check whether the braking resistor is connected or not, or whether the parameters are set correctly.
* Set the deceleration time slower, don't brake too fast.
2. Error F30002: Undervoltage fault
What does it mean?
What does it mean? The bus voltage is too low, the driver can't get enough power.
Possible causes:
* The voltage of the power supply itself is unstable or low.
* Loose connector, wire deterioration.
* Grid faults, voltage valleys.
How to deal with:
* Measure the utility power, stable or not, voltage enough or not.
* Check whether the power cord is firmly connected and oxidized.
* Re-tighten the terminals and remove any corrosion.
3. Error F38050: Over-temperature protection
What does it mean?
The internal temperature of the inverter is too high, it protects itself and stops.
Possible causes:
* The fan is broken, does not rotate or is stuck.
* Radiator dirty, gray too thick.
* Electronic control cabinet temperature would have been too high, can not dissipate heat.
How to deal with:
* Clean the ash! Radiator, air ducts are clean.
* Fan does not turn on a new one.
* Really hot outrageous on the improvement of ventilation conditions, do not let the inverter sauna.
4. Error F30024: Overcurrent fault
What does it mean?
What does it mean? The output current spikes and the drive stops in order to protect itself.
Possible causes:
* Motor overload, mechanical jamming.
* Wrong motor parameters set in the drive.
* Motor short-circuit, cable breakage and ignition.
How to deal with:
* See if there is any stuck place, such as bearings, rust, foreign objects.
* Check whether the motor parameters in the driver are corresponding to the model number.
* Remove the motor cable and measure the insulation to see if there is a short circuit.
5. Error F30003: Ground fault
What does it mean?
A leakage current is detected, indicating where there may be a short ground.
Possible causes:
* Water in motor, moisture in cable.
* The cable is old, torn, insulation has fallen off.
* The motor coil is defective.
What to do:
* Measure the insulation resistance with a megohmmeter (rocking meter).
* Take out the motor to see if there is any water vapor, oil, or dust.
* Find the problematic cable, replace it with a new one or re-wrap it, and don't be sloppy with the grounding.
When Should I Call a Repair Professional?
Some of these problems can be checked out and dealt with in the field. But if you can't get it right after a few rounds of trying, or if the equipment itself is expensive and can't be dismantled, then it's best to leave it to a professional team to do the testing and repair.
We Songwei can provide:
1). Professional SINAMICS test platform, simulation of the real machine operating environment.
2). Detection + report, so that you are clear about each point of failure.
3). High-quality repair and rework test, to ensure that repaired and then on the machine.
4). Detection of no money, the repair of the first offer, rest assured that not a set way!
Lastly
Siemens frequency converter is really solid and good to use, but it is normal to use a little temper for a long time. Mastering the response to these common errors can save a lot of downtime.
